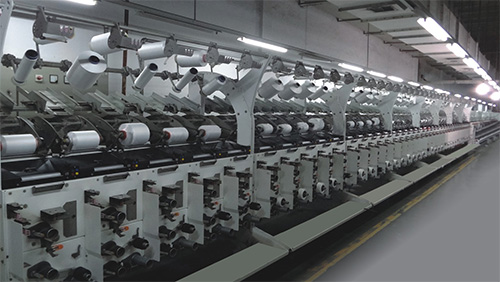

CY215B Electronic yarn-guide Air coated

It is mainly used for the yam air network of FDY+FDY, FDY+DTY, DTY+DTY, etc.; the air coating of FDY or DTY and spandex.

Features:

◎ Full computer intelligent control system ensures easy process adjustment and unlimited combination.

◎ intelligent electronic yarn-guide can double the production efficiency and reduce the production cost per unit of production.

◎The winding and overfeeding systems all use 36V safe voltage DC brushless motor to minimize the cost of electricity.

◎All motors are controlled by digital system to ensure high-precision motor rotation and ensure product consistency and stability.

3 technical parameters:

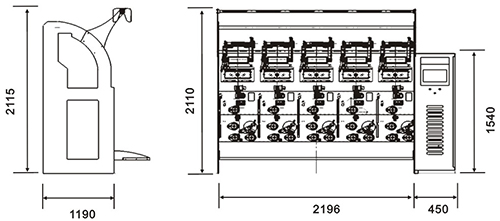

Machine structure	Single-sided single layer, 5 spindles per section, divided into 10 sections, a total of 50 spindles/set
Winding method	Digital winding or precision winding
Mechanical speed	Up to 1100 m / min
Strength mode	Grid-type tension
Winding tube	Parallel tube
Forming method	Straight edge forming or bevel forming (freely programmable)
Winding stroke	130mm~260mm (infinitely variable)
Coil take-up diameter	Up to 280 mm (85-105 mm: depending on the size of the bobbin, there may be some restrictions)
Rated power	580W/ingot
Compressed air	6 Pa

Winder, doubl...
