CY215A intelligentelectronic yarn-guide winder

It is suitable for the tube rewinding process of textured filaments, straight yarns, staple fiber yarns, silk, elastic fiber yarns, industrial yarns, etc.

1 Features:

◎ High-performance servo motor guide yarn and brushless DC motor winding can double the production efficiency and reduce the cost.

◎ Replace the mechanical structure with comprehensive intelligent control technology, which is more convenient and simple to operate and control.

◎ The length of the forming, the angle of the edge and the degree of soft edges can be adjusted arbitrarily to ensure uniform density of the package.

2 Technical parameters:

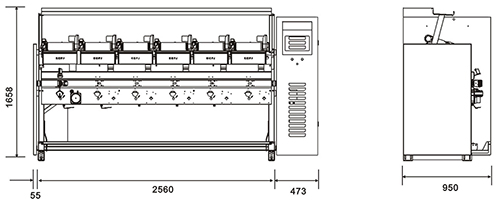

Machine structure	Single-sided single layer, 6 spindles per section, divided into 10 sections, totaling 60 spindles/set
Spindle distance	409mm
Linear velocity	200-1100 m / min
Strength mode	Electronic online tension, electronic clamp-type tension, heavy hammer gate tension (optional)
Winding tube	Parallel or tapered tube
Winding stroke	130mm~260mm (freely programmable)
Forming method	Straight edge forming or bevel forming (angle can be adjusted freely)
rated power	300W/ingot
