Products >> Twisting series of Chemical fiber filament

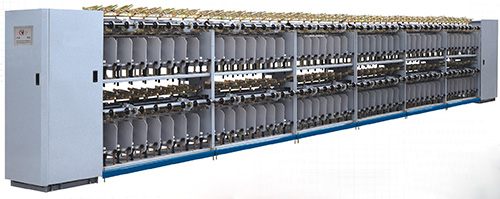

CY310 chemical fiber two-for-one twister
.jpg)
It is suitable for chemical fiber filament twisting equipment, realizes one turn and two turns, the efficiency is doubled compared with the traditional wire machine, the package capacity is increased, the 10,000 meters is not followed, and the twisting quality is greatly improved.
Features:
1. The floor height is moderate and the operation is convenient;
2, simple drive system, maintenance is extremely convenient;
3. The specially treated CY chemical fiber double twisting spindle has a wider application range;
4, can be formed without boundaries.
Technical Parameters:
Number of spindles | 256 |
Supply package size | L240-320*Φ42*Φ 110 |
Take-up bobbin size | Φ160*Φ89*L165*L173 |
Spindle distance | 225mm |
Highest spindle speed | 15000rpm |
Common spindle revolutions | 8000-14000rpm |
Width range | 350-3989T/m |
Orientation | S or Z |
Spindle rotation | Dragon belt cycle transmission |
Spindle fixing | Magnetic fixing |
Starting method | Y-△ slow start |
Tensioner | Ball tensioner and washer tensioner |
Take up long force | Adjust the angle of the wire on the super-feed roller |
Motor Power | 7.5KW*2 |
Dimensions | 16410*750*1895mm |

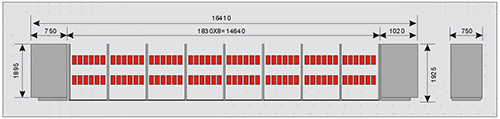

Machine size:
.jpg)
