Products >> Large Package Two-for-one Twister (garment fabric series)
CY258A large package two-for-one twister
.jpg)
Features:
1. Energy saving and consumption reduction: the use of patented energy-saving high-quality spindles greatly reduces the power consumption per unit of product;
2, the volume of the package is large: large package for industrial fiber, one-time feeding;
3, economical and practical: compact structure, optimized layout, unit product cost to a minimum.
Scope of application:
It is suitable for the twisting of single or strand yarns of industrial yarns such as polypropylene, nylon, polyester and aramid.
.jpg)

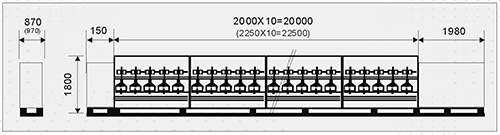

Machine size:
.jpg)
Technical Parameters:
Machine form | Double layer single layer, threading thread |
Number of spindles | Multiples of 10 spindles (or 8), standard 100 spindles/set (or 80 spindles/set) |
Spindle distance | 450mm or 450mm or 550mm |
Orientation | S or Z, |
Width range | 35-600捻/m |
Winding stroke | 240-270mm adjustable |
Main motor | 22KW |
Startup mode | Frequency conversion slow start |
Volume | 8KG or 10G maximum |
Spindle speed range | 1500 rpm - 6000 rpm |
Spindle Tensioner | Steel ball or capsule |
Winding speed | Up to 120 m / min |
Spindle drive | Dragon belt cutting drive |
