KC521 precision hi-speed silk winder

1. Scope of application:

The two-for-one twister, the fancy twisting machine, and the front-end equipment of the covering yarn machine, the raw material bobbins of different specifications are wound into a two-for-one twister, a fancy twisting machine, and a coating. The double-cone, parallel bobbin processed on the yarn machine can provide the common threading function of the raw materials.

2. Features:

* Simple shape and extremely convenient maintenance.

* Single board machine integrated control, the operation interface is simple and clear.

* Product-integrated structure design to meet different users and maximize the potential of this machine.

*The ball screw designed and manufactured according to the German DIN standard and the bearings and inverters produced by the advanced countries make the equipment run accurately and stably.

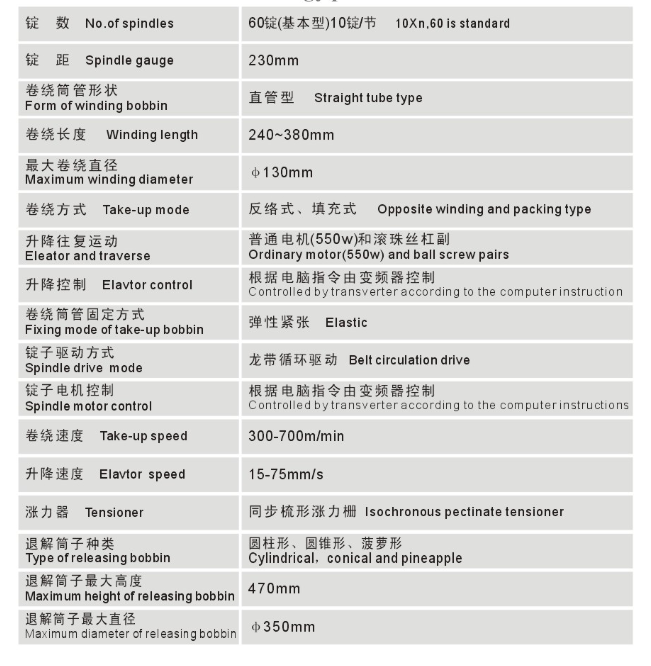

3, technical parameters

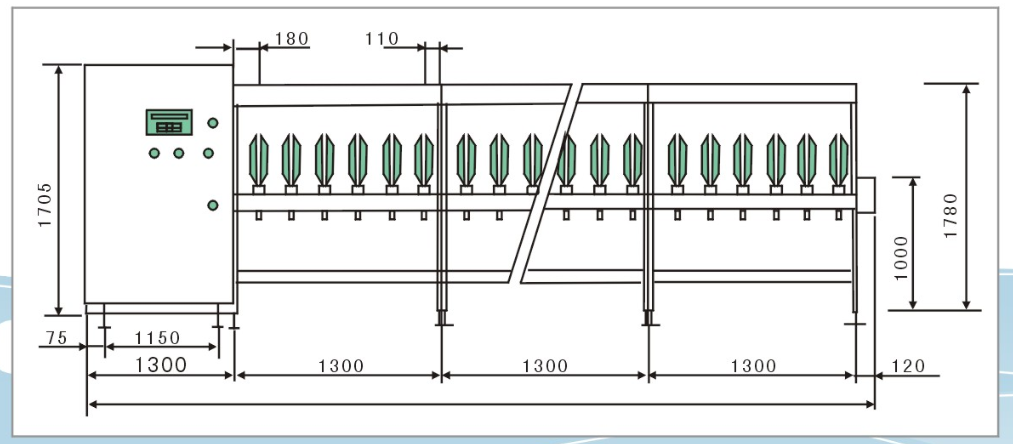

4, outline diagram
