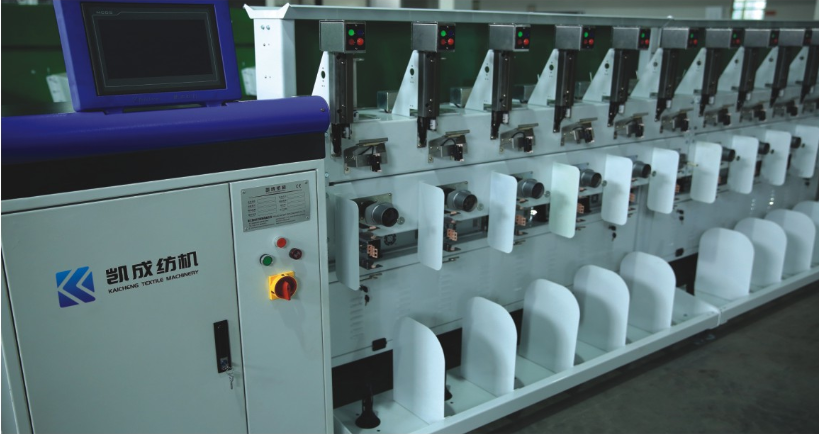

KC521A precision hi-speed silk winder

KC521A precision hi-speed silk winder is mainly used for FDY, DTY and other ultra-fine denier, chemical fiber filaments on the wire coating machine or two-for-one twister on the bobbin Precision Winder for coating or twisting .

Features:

* Adopt electronic yarn-guide forming system, intelligent adjustable length, easy to use a variety of lengths, and ensure uniform density of simple filaments.
* With digital programming intelligent control, the winding path will ensure the shaping of the filament at the hi-speed winding.
* Adopt intelligent constant force system and automatic tracking overfeed system to ensure stable yarn formation.
* The encoder inspection control system and the single spindle length system are used to achieve consistent yarn production.
* The whole machine brushless DC motor is driven by a single spindle, which can be used for upper and lower yarns at will; it can reduce the energy consumption and improve the operation flexibility.

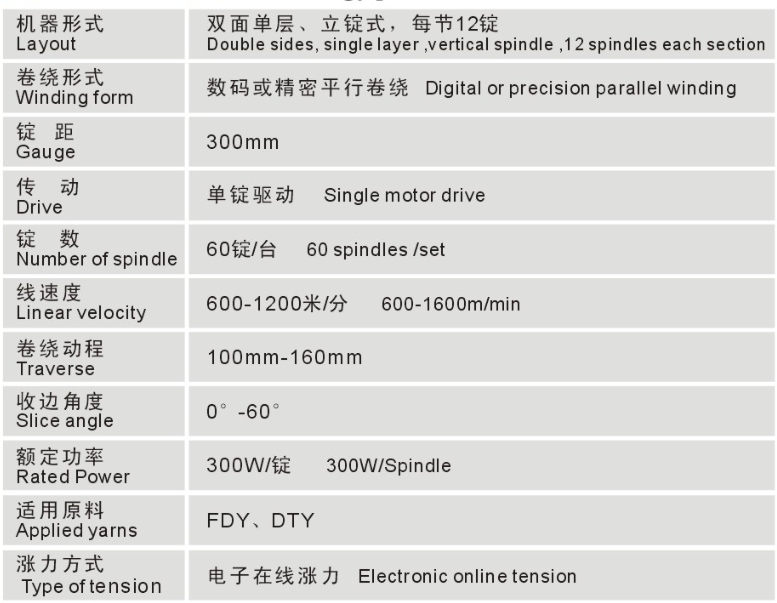

Technical Parameters:

Machine size:
