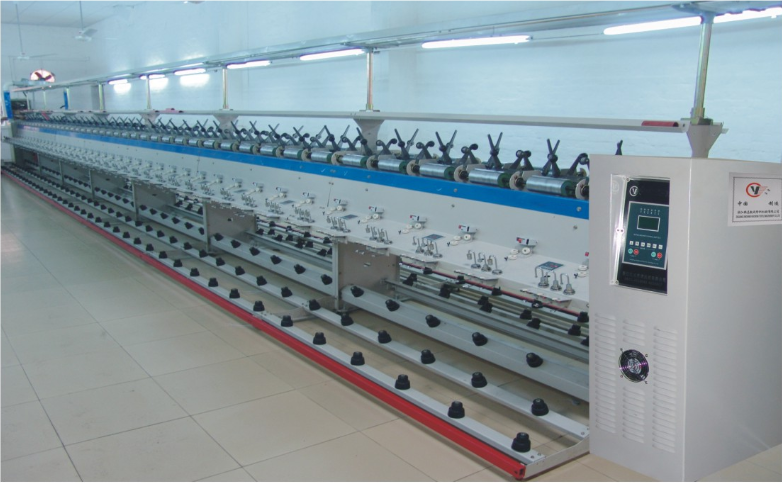

CY200 High Speed Double Winder

It is suitable for the joint processing of cotton, polyester, chemical fiber and blended yarns. It combines two or three strands of yarns of different specifications to form a parallel post bobbin that can be processed on a two-for-one twister.

Features:

1, uses a single spindle motor drive and frequency adjustment, the adjustment of the winding wire speed simpler, more flexible adjustment process;
2, a tension device, the tension adjustment can be easily achieved by changing tension sheet;
3, grooved drum Forming, stable and reliable, suitable for many varieties;
4, electronic break detector and electronic fixed-length yarn clearer device as one, not only the mixing of single yarn and double-strand yarn, but also the package of uniform length yarn To make the product quality higher:
5, reasonable and clear guide wire structure, suitable machine height, extremely high speed.

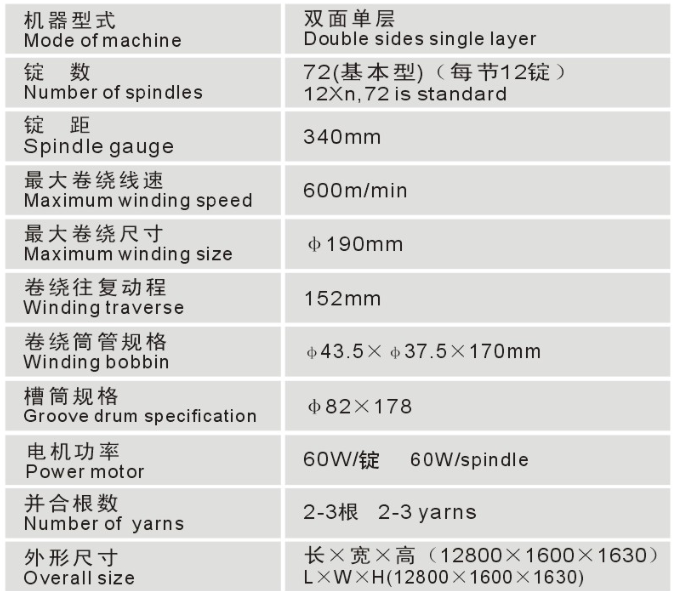

Technical Parameters:

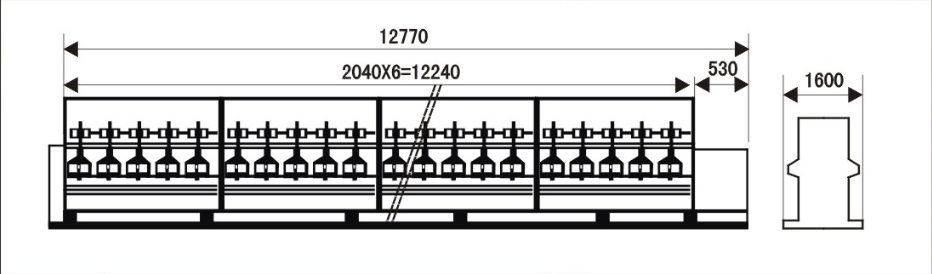

Machine size:
